Product Features:

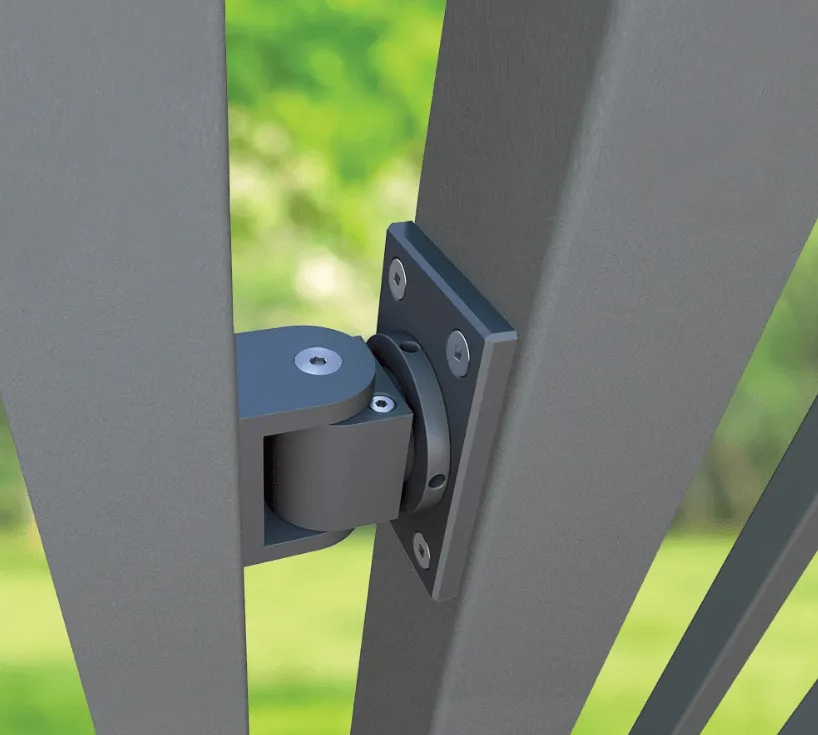

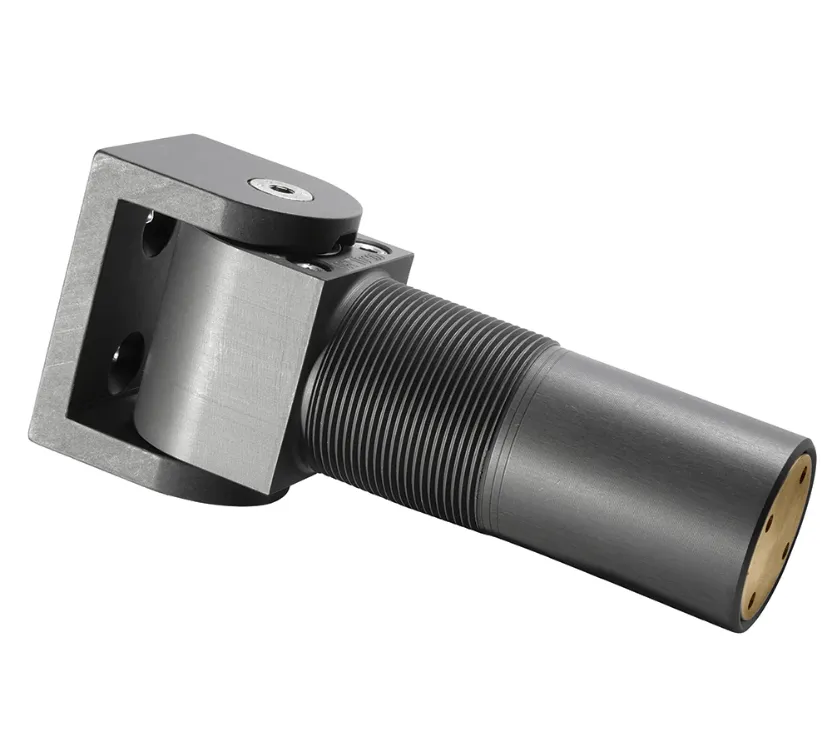

- SureClose Adjustable Self-Closing Gate Hinge with Final Snap Action
- Center mount
- Non-Safety
- Internally Mounted, Hydraulic, Gate Hinge-Closers
- Self-Closing from 90º – will not hold open
- Final Snap-Close Action (FSA) which increases speed at the end of closing to overcome electric or coded locks
- Gate Applications: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
- Maintenance free, with high corrosion resistance
- Screw-on or weld-on models available
- Prevents gate slam noise & gate damage
- 50-micron anodizing (aluminum components)
- Proprietary finish – no need to grind before welding
- Both ‘Closing Speed’ and ‘Final Snap’ are adjustable using the supplied adjustment tool
- Designed to never leak hydraulic fluid, the SureClose 108 is extremely safe and do not offer resistance if closed quickly in an emergency
- Gate mounting brackets included
- Post mounting brackets sold separately -

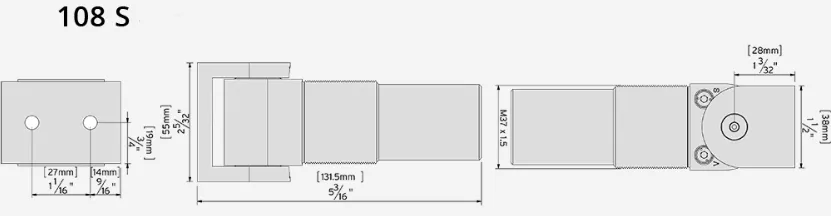

- 108 Model
- Two of these hinges self-closes gates up to 260 lb (120kg) (see chart below)
- Important: Order 2 hinges per gate
Specifications:
- Finish: Black
- Gate Type: Self-Closing, Non-safety
- Gate Material: Aluminum, Steel/Ornamental Iron
- Approximate Gate Size: 4ft W x 6ft H (1.2m x 1.8m)
- Gate Frame/Post Shape: Square-to-Square
- Minimum Post Size: 3" (75mm)
- Ideal Gate Gap: 2½–3" (63-76mm)
